Patent for Hydrogen Tube

  • 1949-Mar-08

Rights

Public Domain

Download all 7 images

PDFZIPof full-sized JPGs

Download selected image

Small JPG1200 x 1717px — 292 KBFull-sized JPG2565 x 3670px — 1.3 MBOriginal fileTIFF — 2565 x 3670px — 27.0 MB
View
Public
Domain
PDF
Download PDF
ZIP
of full-sized JPGs
Download ZIP

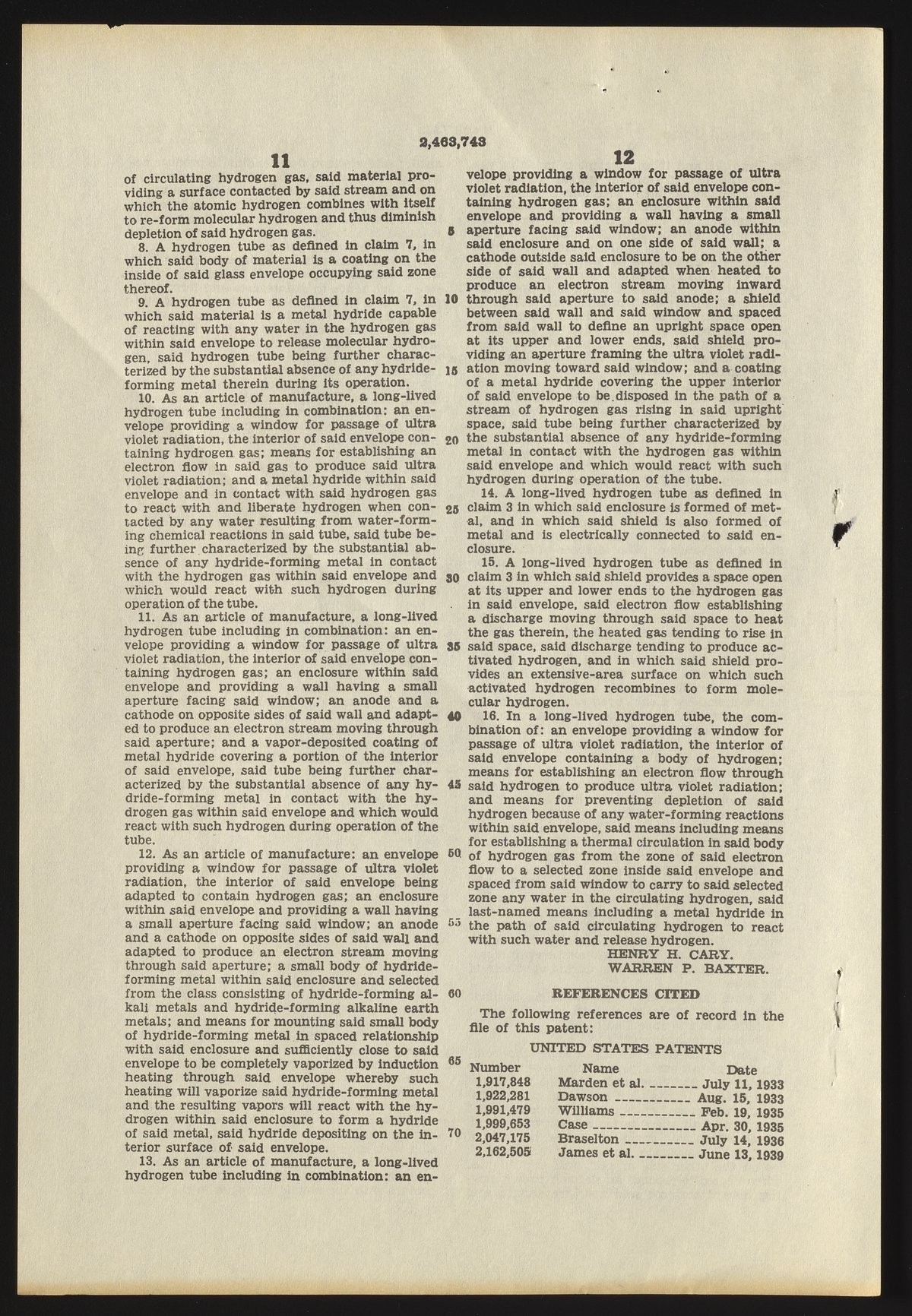

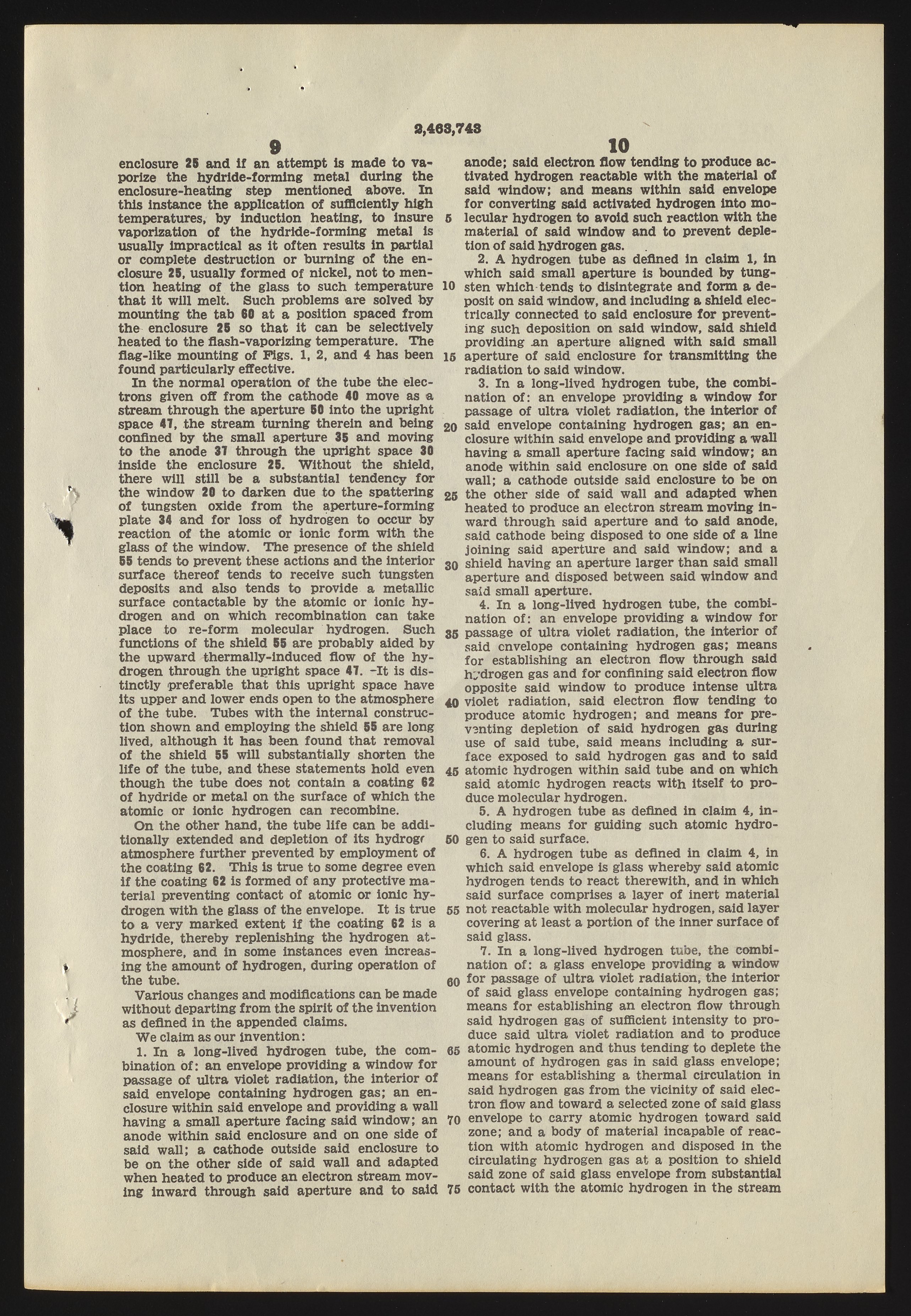

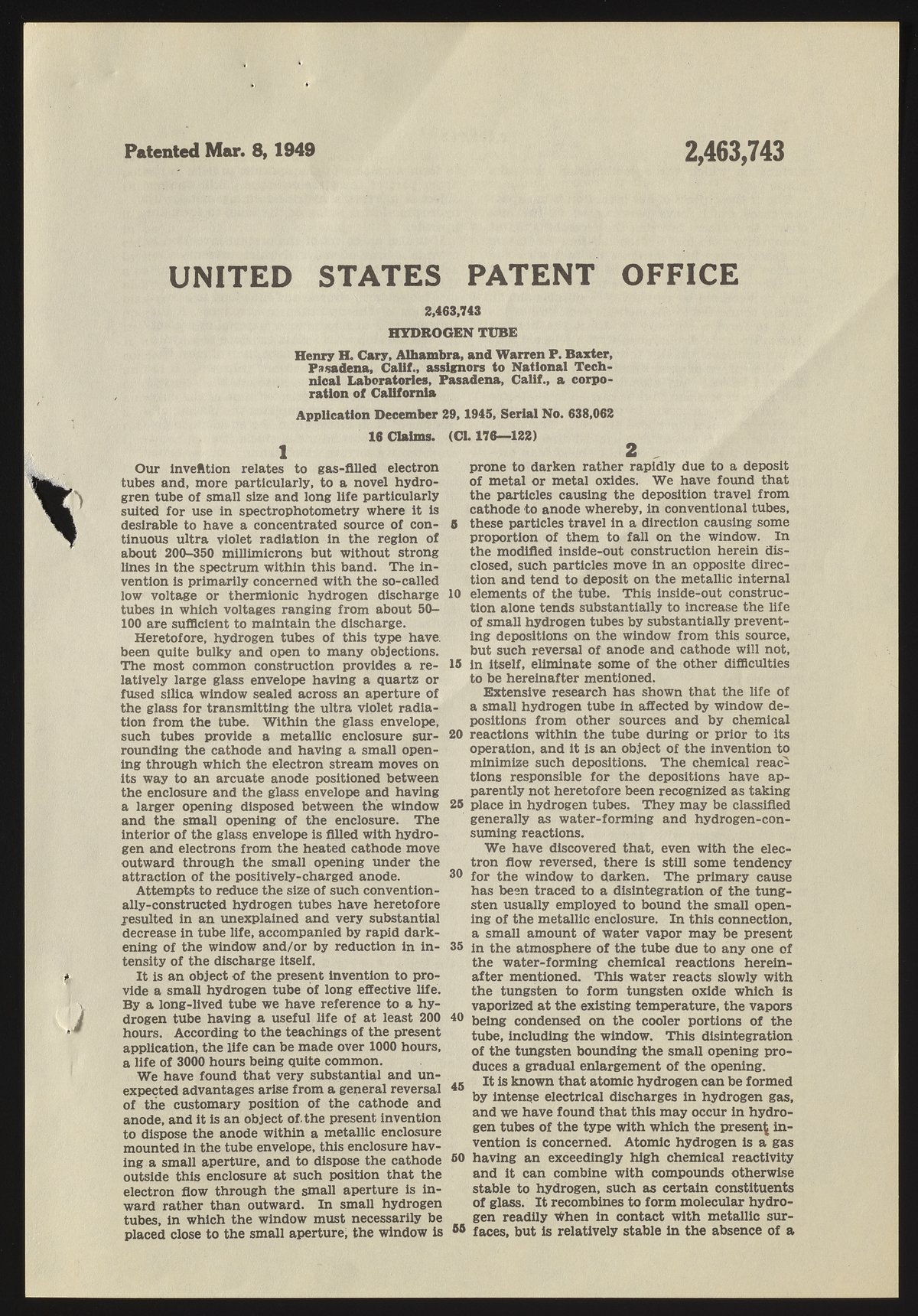

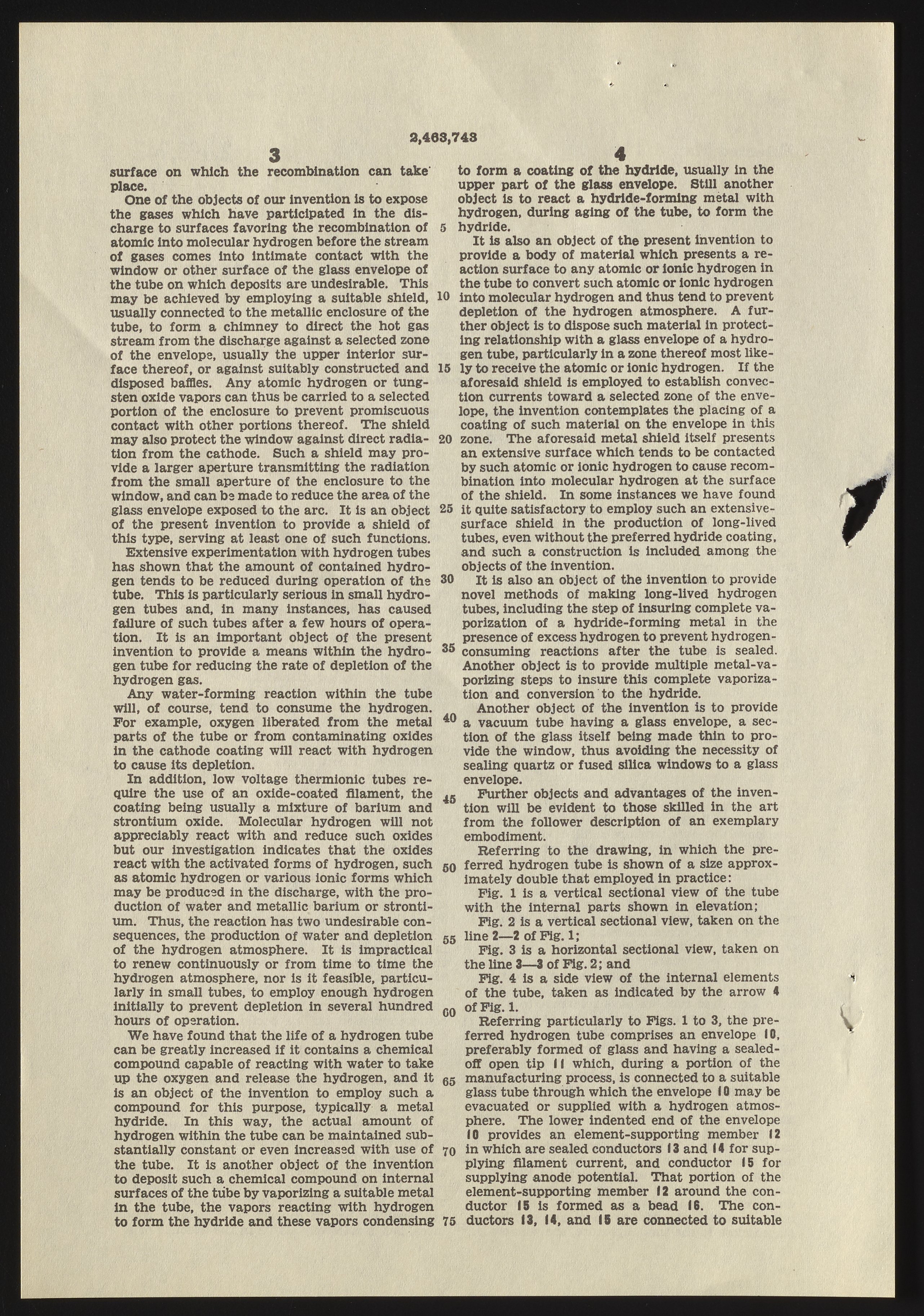

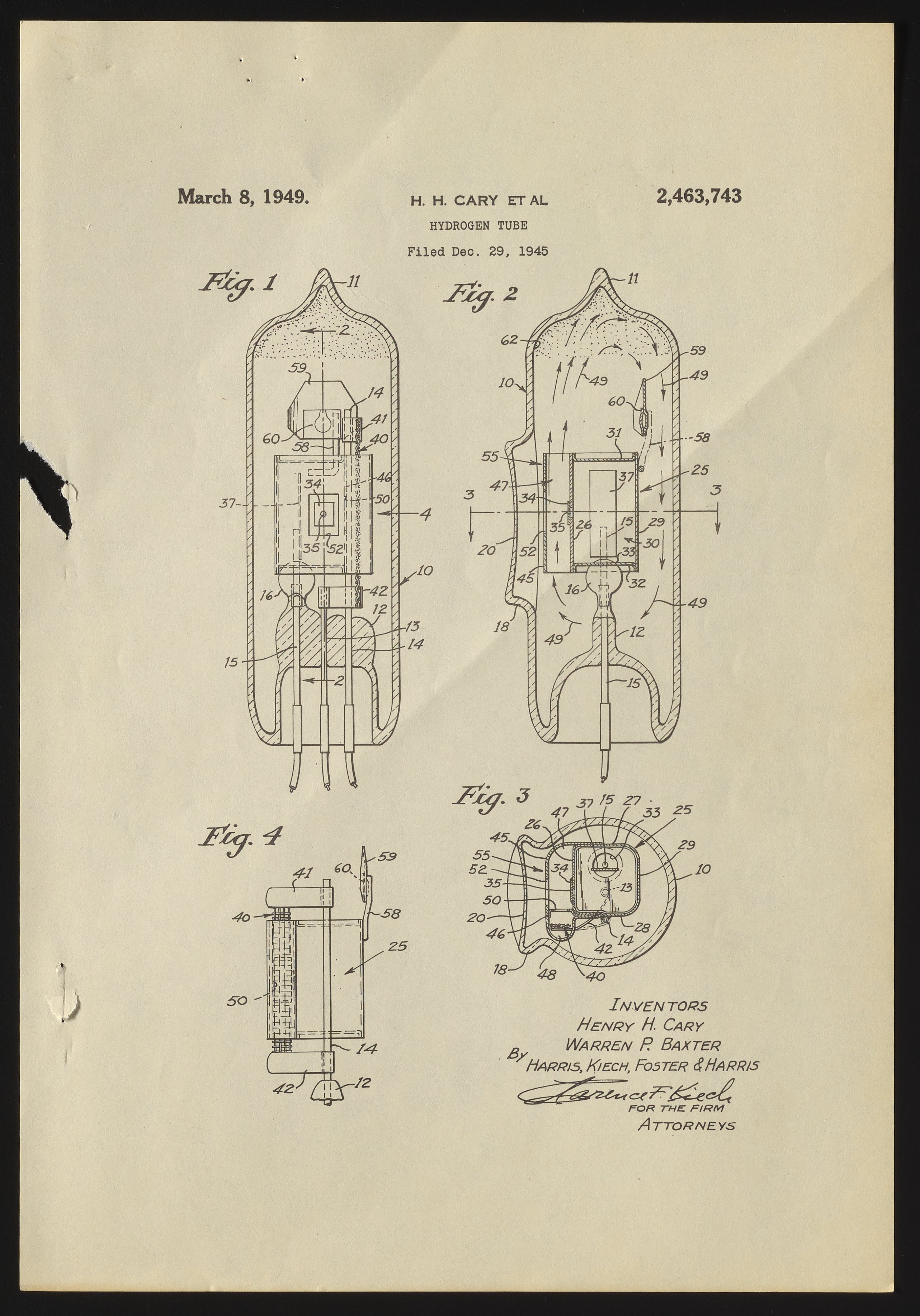

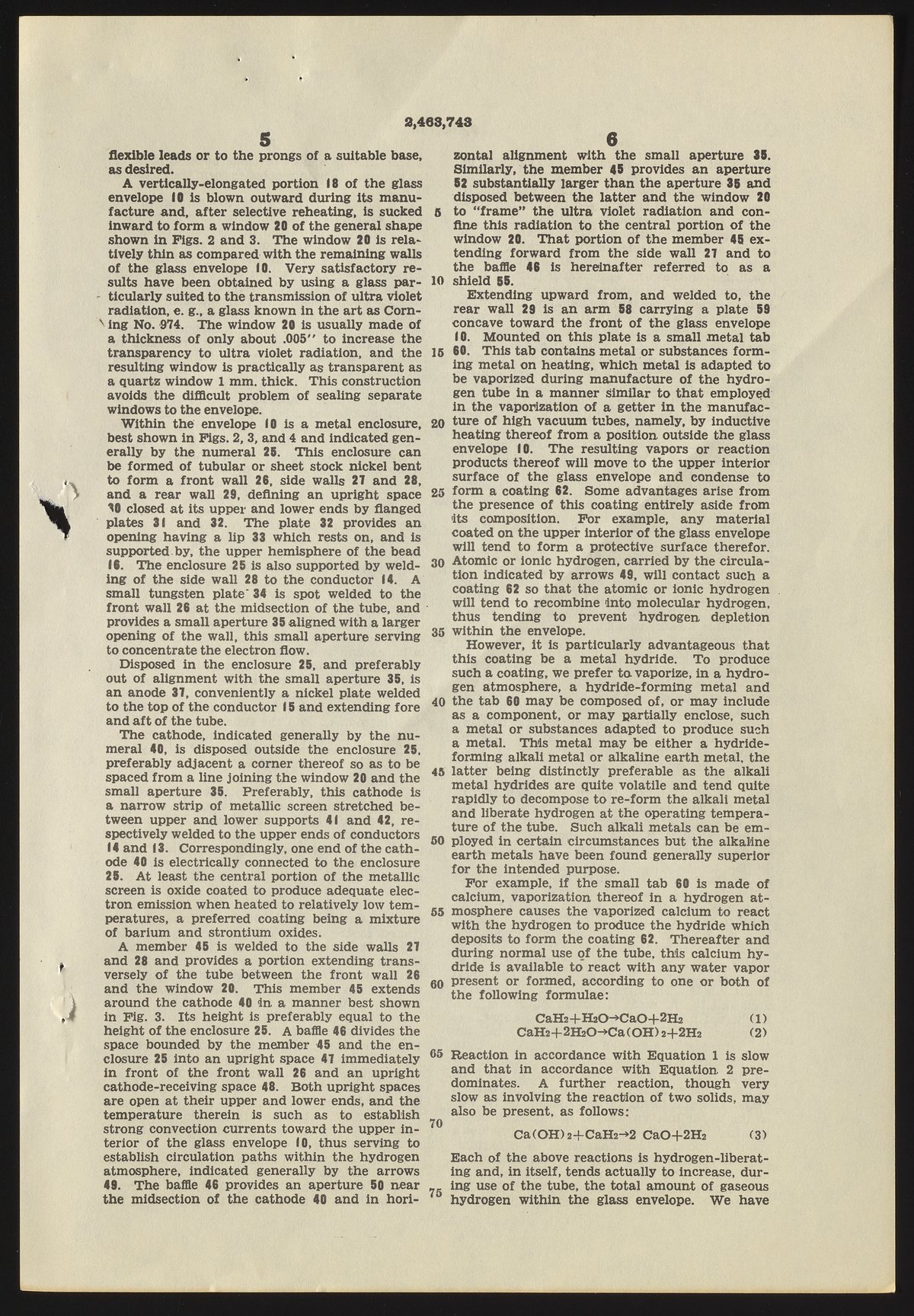

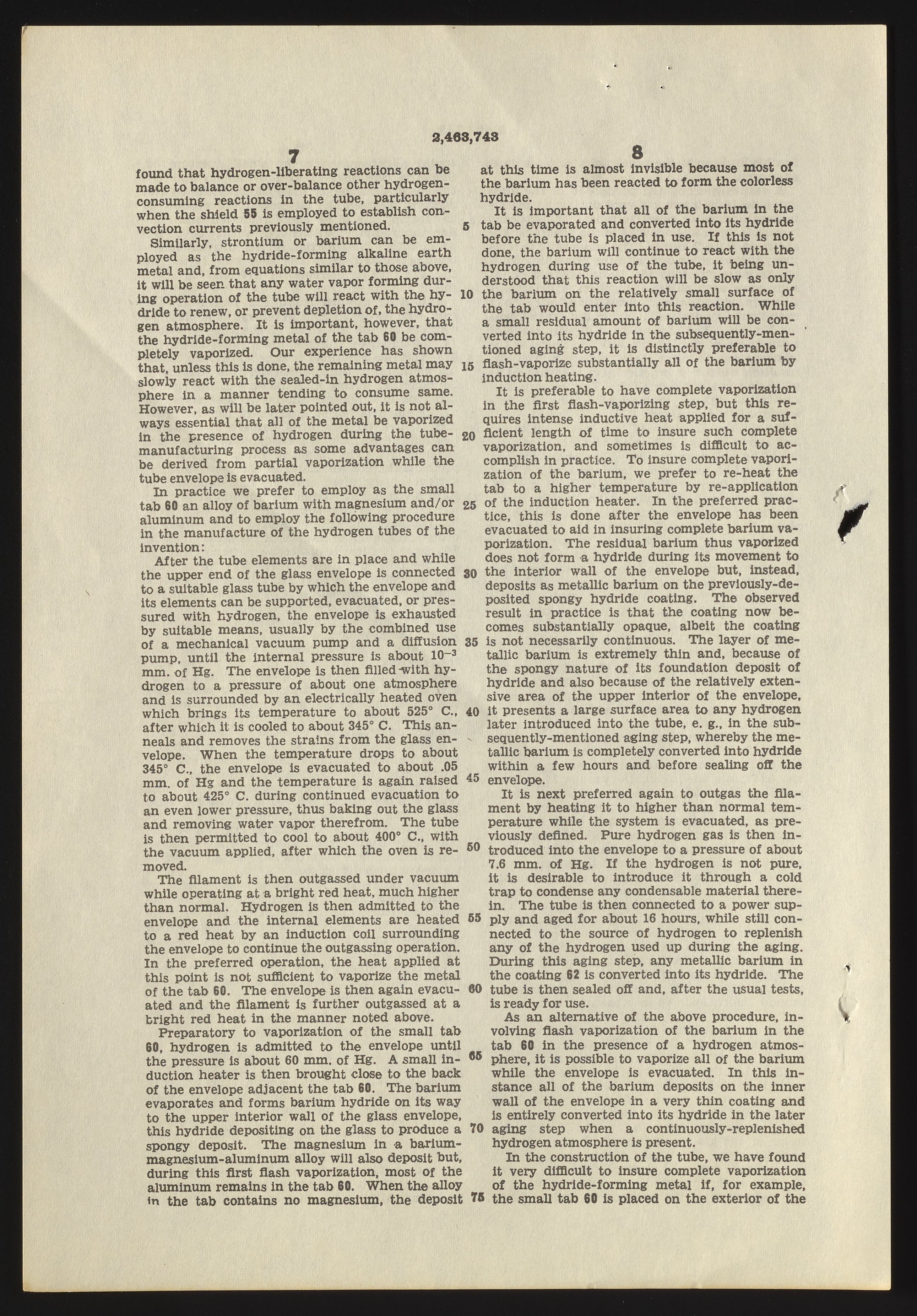

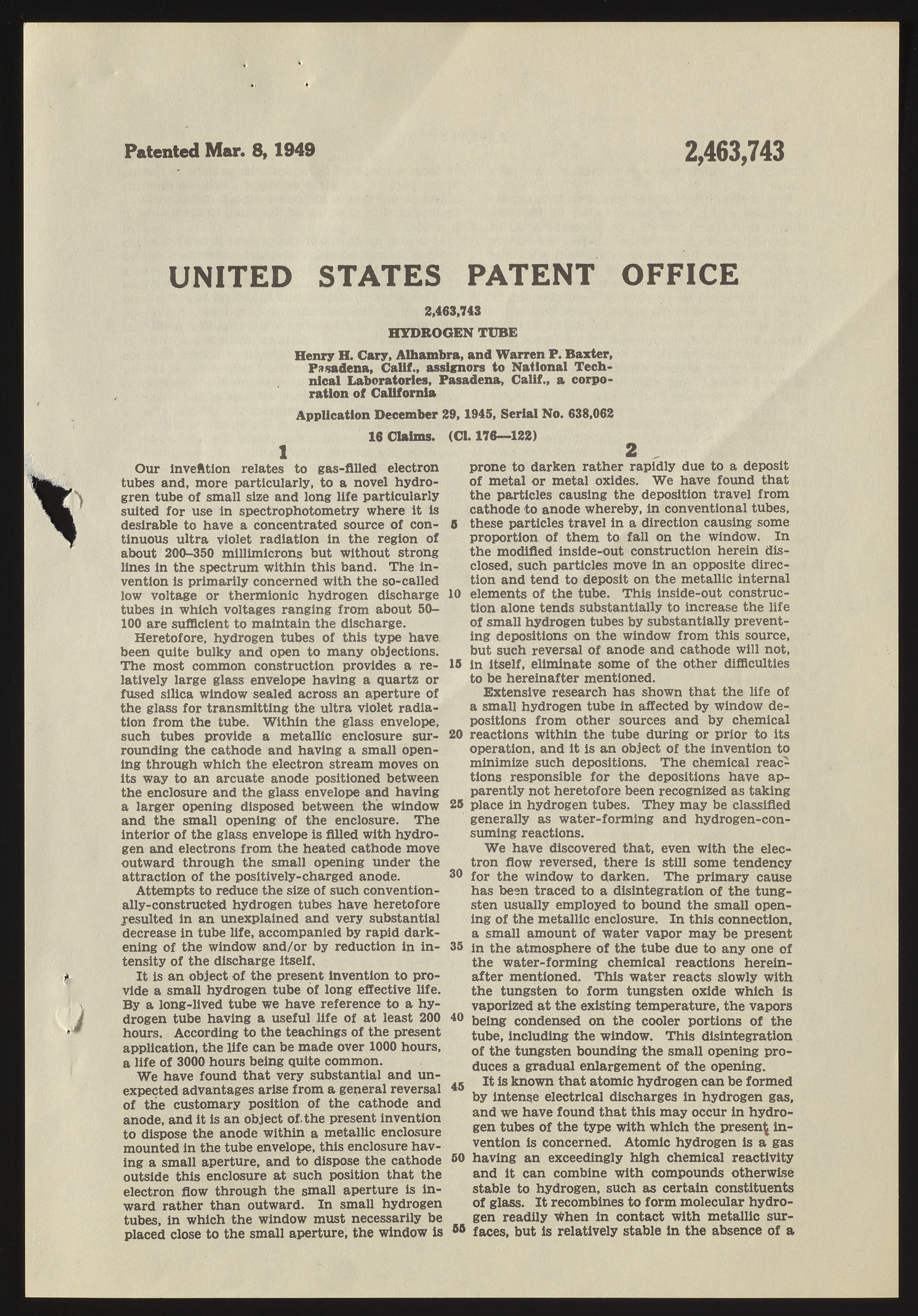

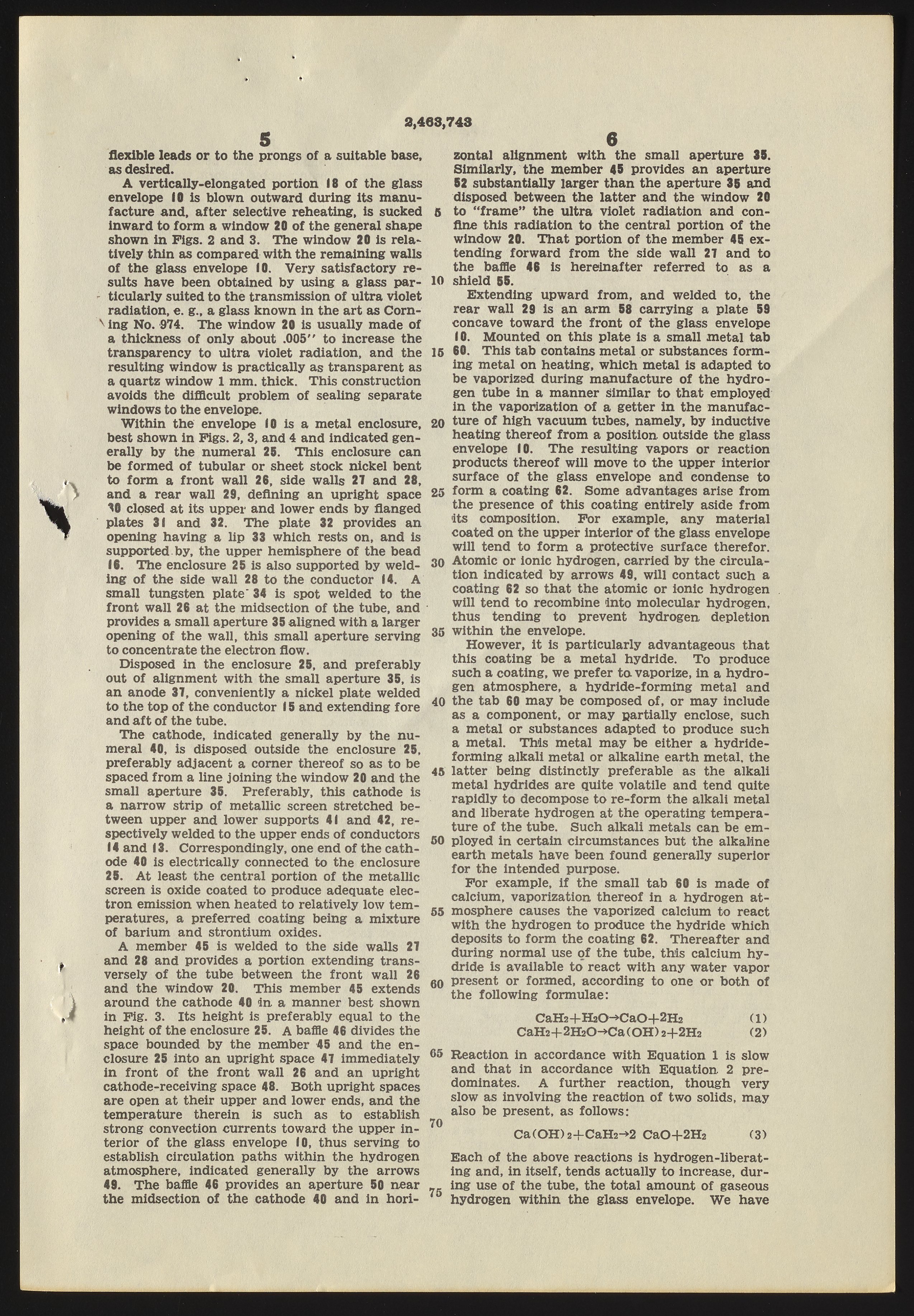

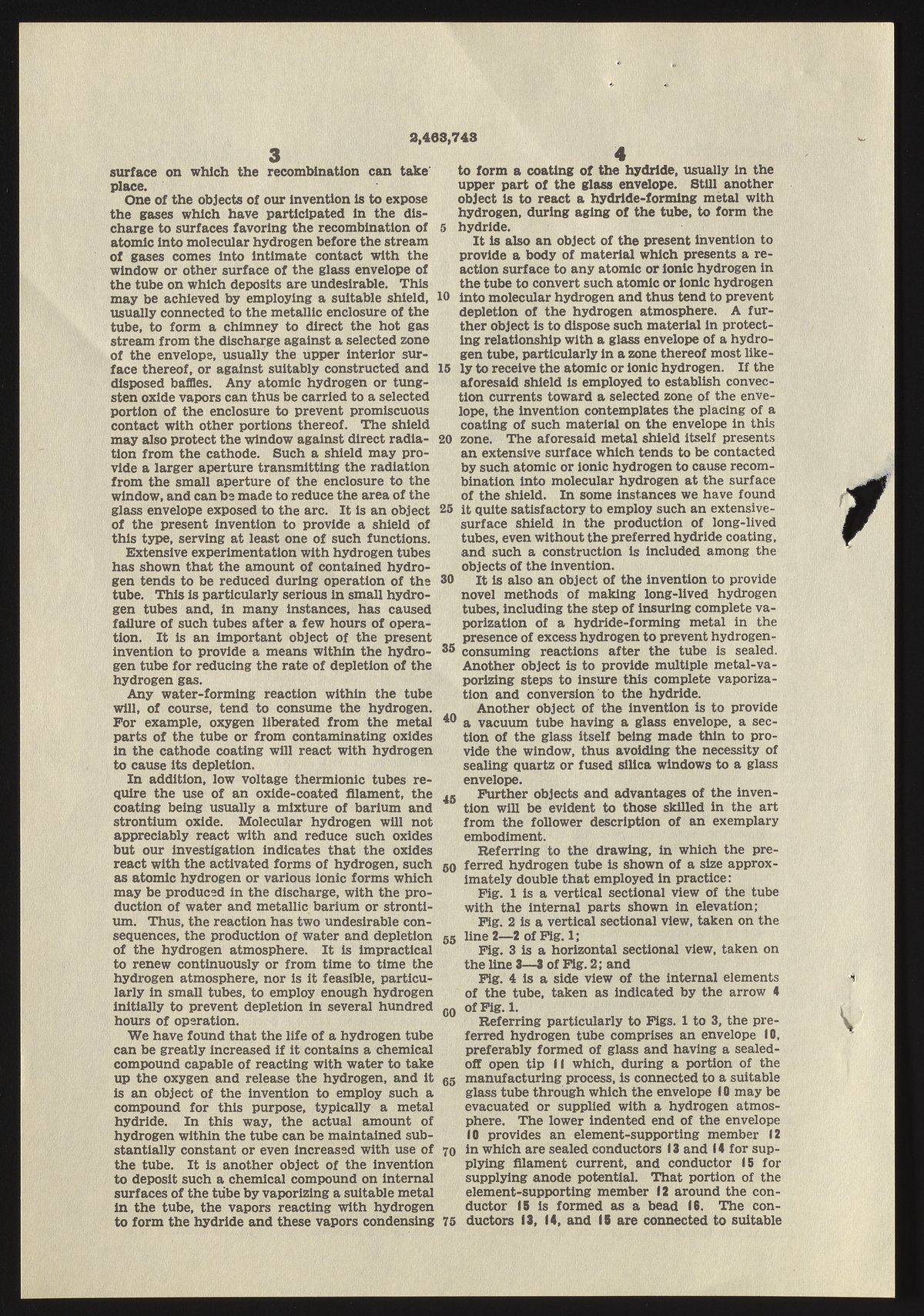

Patent #2,463,743 for a hydrogen tube designed by H. Howard Cary and Warren Baxter during their time at National Technical Labs, a precursor to Beckman Instruments. This tube was designed for use in UV spectrophotometers to provide a consistent source of ultraviolet radiation. It improved on previous designs by being smaller, but avoiding the problems with decreased tube life that usually accompanied a decrease in size.

Property Value
Creator of work
Format
Genre
Extent
  • 7.75 in. W x 11.25 in. L
Language
Subject
Rights Public Domain Mark 1.0
Credit line
  • Courtesy of Science History Institute

Institutional location

Department
Collection
Series arrangement
  • Sub-series 3. Product Files
  • Series II. Business Activities Files
Physical container
  • Box 19, Folder 22

View collection guide View in library catalog

Related Items

Cite as

Cary, H. Howard (Henry Howard), and Warren P. Baxter. “Patent for Hydrogen Tube,” March 8, 1949. Beckman Historical Collection, Box 19, Folder 22. Science History Institute. Philadelphia. https://digital.sciencehistory.org/works/br86b4380.
