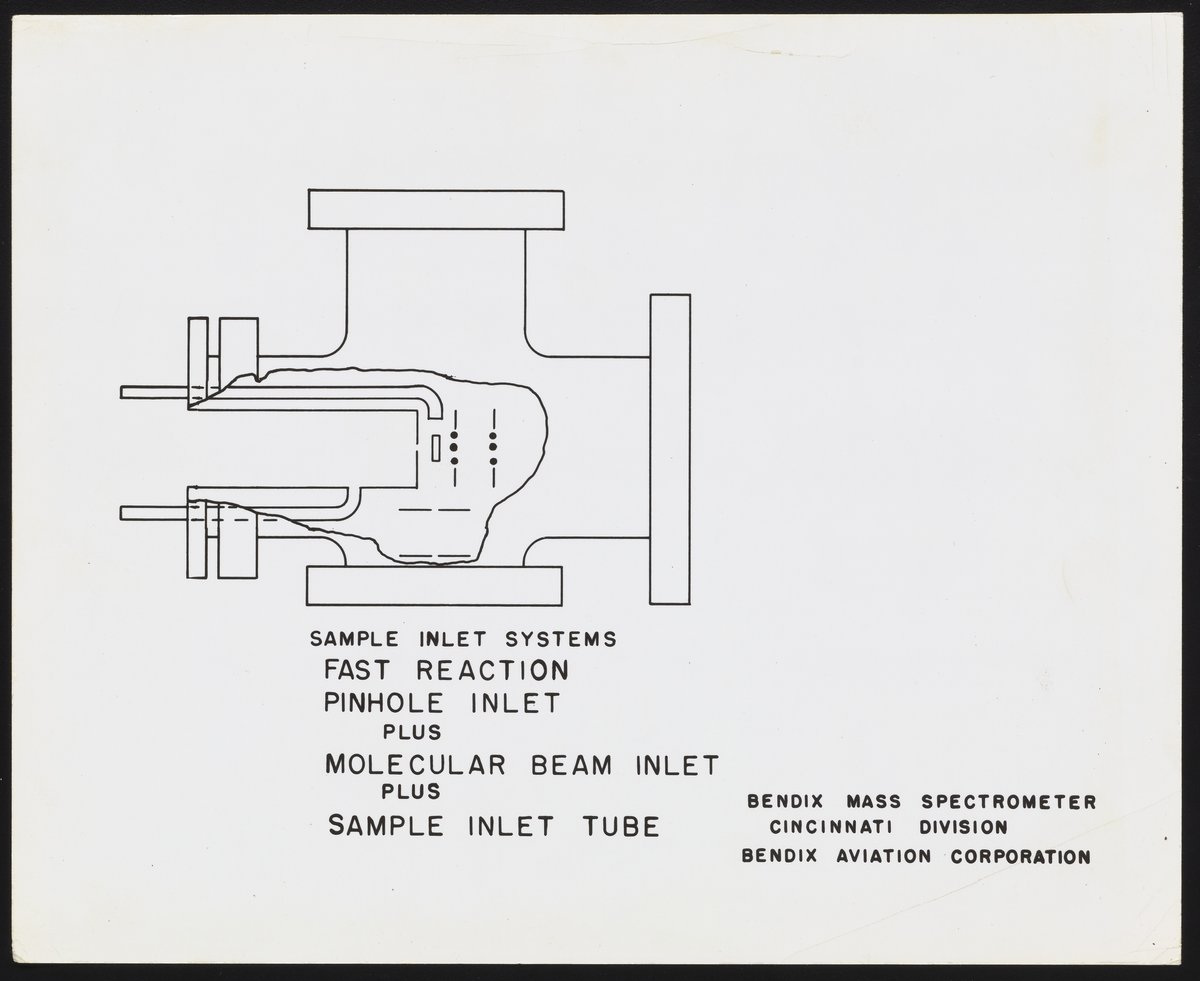

Diagram depicting several sample inlet systems, including the fast reaction pinhole inlet, molecular beam inlet, and sample inlet tube, designed for use with a Bendix Time-of-Flight Mass Spectrometer. Inlet systems are typically used to introduce samples into a mass spectrometer's ion source for analysis. The Time-of-Flight Mass Spectrometer (TOFMS) was the flagship analytical instrument of the Bendix Corporation.
