Plate 144: Bridge for crossing a city or fortress moat and scaling its wall

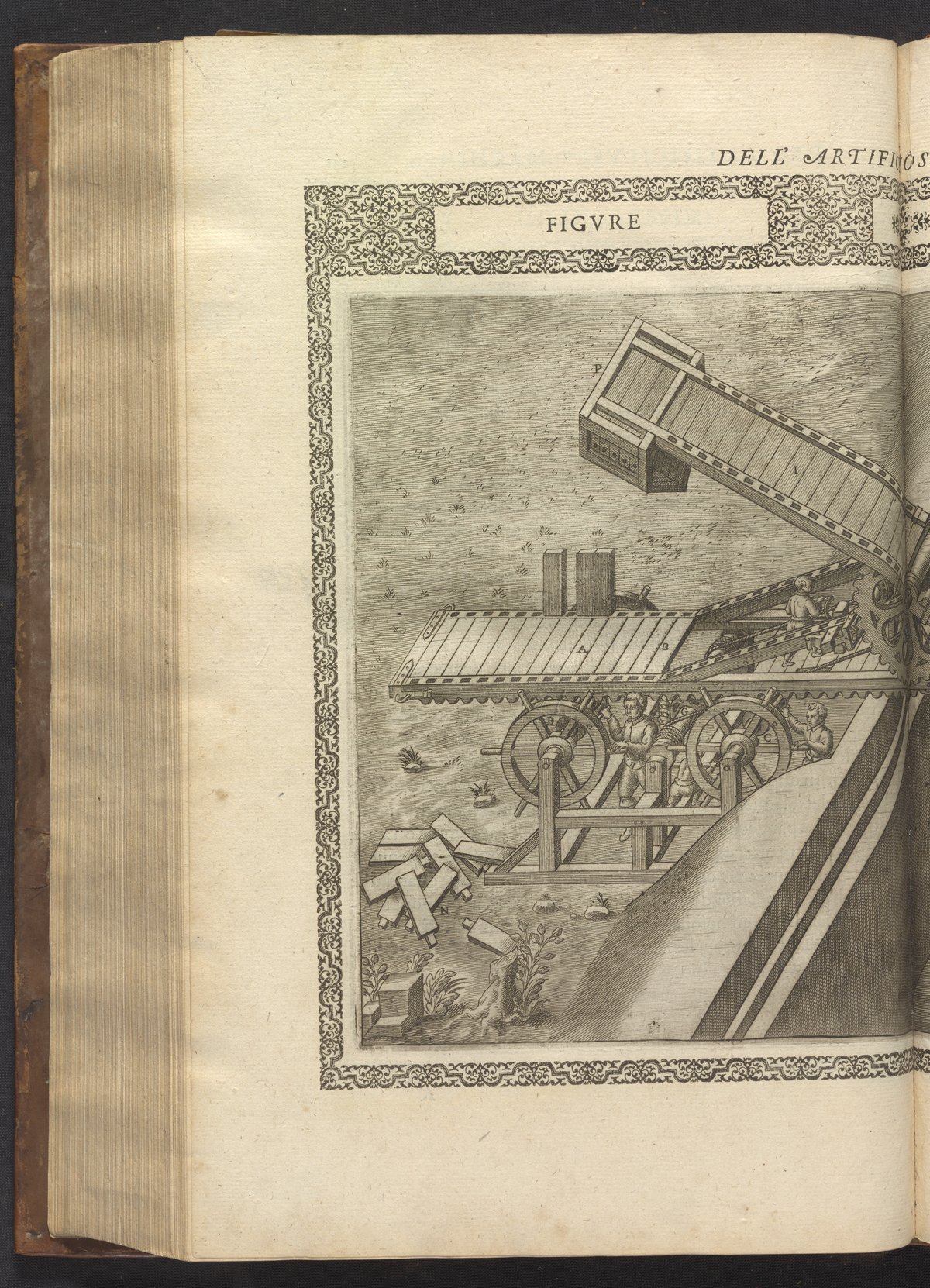

Barrels of earth and debris can be thrown into the moat from under the front of the machine as a decoy to distract from the doubled-over bridge, which can be unfolded quickly and unexpectedly.
Mechanics: winch; hand crank; spur gear and lantern; worm and worm gear; lantern and rack.
